CNC Multi-Function (ID/OD) Grinder
D1
| Swivel over table dia | Ø500mm |
|---|---|
| Workhead Speed | 0-1000r.p.m |
| Workhead swivel by manual | +15º & -5º |
| X-axis max. travel | 350mm |
| Y-axis max. travel | 350+250mm |
| Z-axis max. travel | 350+250mm |
| Grinding capacity | Ø2~400mm |
| Max. grinding diameter | Ø320mm |
| Max. grinding depth | 250mm |
| Max. grinding faces | 16 |
| Max. workpiece weight | 50kgs |
| X-axis speed | 0~10000mm/min |
| Y-axis speed | 0~10000mm/min |
| Z-axis speed | 0~10000mm/min |
| X-axis min. travel unit | 0.0001mm |
| Y-axis min. travel unit | 0.0001mm |
| Z-axis min. travel unit | 0.0001mm |
| Workhead moter | 1.5kw, 4p |
| Y-axis grinding wheel motor | 2.2kw, 2p |
| Z-axis grinding wheel motor | 2.2kw, 2p |
| Electricity requirement | 15kw |
| Machine Dimensions | 2365(W) x 1880(D) x 1830(H)mm |
| Space requirement for installation | 3450(W) x 2860(D) x 2350(H)mm |
| Machine weight | 4000kgs |
Designed for Diversification Work Pieces

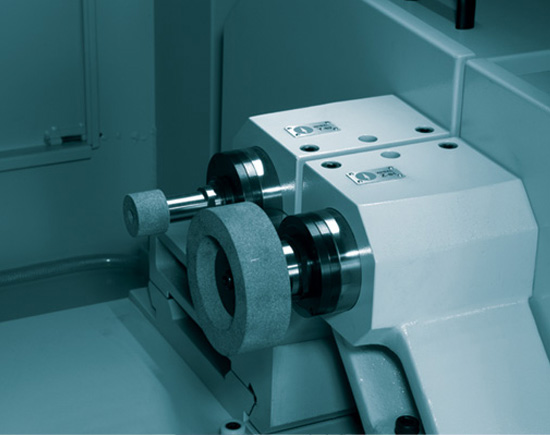

The patented "Twin Wheel Grinding Spindles" can grind ID/OD, Inner/Outer end face,
and taper at one cycle, increasing the concentricity and fficiency of the production.
User-friendly Operation Interface
Our outstanding R&D team, standing on the needs of the users to design all kinds
of machining possibility for various work pieces. The flexible programming software,
giving users diverse solutions.
Internationally Recognized Control System

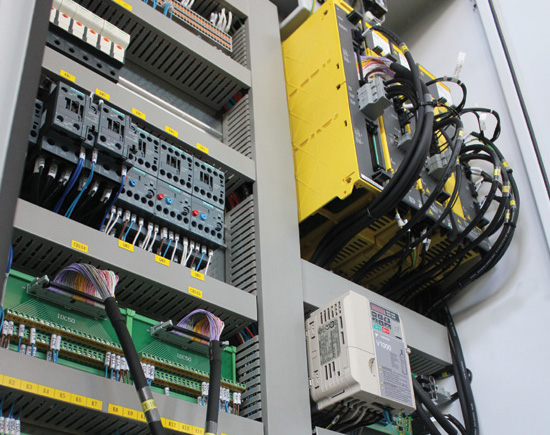

The electronic system uses inner circulation which locks out humidity and prevent
the mechanical parts from overheating.
Rapid Grinding Design
Besides dimension precision grinding system, the patented design "automatic sensing
device" can quickly detect the contact surface of the ID/OD, inner/outer end faces for
rapid and small amount face grinding. It is significant saving in processing time, and
increasing machining efficiency.
